Maxitrol 325 Series Line Pressure Regulators
SKU: MAX-325
Max Pressure (psig): Required
Size: Required
Max Load (BTU/HR) Single: Required
Description
No description available.
| Product Name▲ | SKU↕ | Description↕ | Price↕ | ||
|---|---|---|---|---|---|
| Maxitrol (325-3l-44-ng01) Natural Gas Line Pressure Regulator | MAX-325-3l-44-ng01 | ½″ NPT Lever-Acting Line Pressure Regulator, designed for 2 psig inlet piping systems (certified 2 psi) for natural gas. Outlet spring set for 7–11″ w.c. range. Suitable for natural, manufactured, mixed gases and LPG mixtures. Capacity: total load up to ~250,000 Btu/hr, largest single appliance load ~140,000 Btu/hr. Ambient range: –40 °F to 205 °F. Includes vent limiting device for indoor applications. | View | ||
| Maxitrol (325-3l48-44-ng01) Natural Gas Line Pressure Regulator | MAX-325-3l48-44-ng01 | 1/2" NPT Lever-Acting Line Pressure Regulator with OPD, (for up to 5 psig inlet systems). | View | ||
| Maxitrol (325-5l-66-ng01) Natural Gas Line Pressure Regulator | MAX-325-5l-66-ng01 | ¾″ NPT Lever-Acting Line Regulator, certified for 2 psig inlet piping systems. Includes vent limiting device (indoor use). Inlet pressure 2 psi maximum; outlet 7–11″ w.c. Capacity: up to ~600,000 Btu/hr total load, largest single appliance ~425,000 Btu/hr. Aluminum body, suitable for natural gas or LPG, ambient range –40 °F to 205 °F | View | ||
| Maxitrol (325-5l600-88-ng01) Natural Gas Line Pressure Regulator | MAX-325-5l600-88-ng01 | 1″ NPT (or ¾″/1″ variant) Lever-Acting Line Regulator with OPD600 (for up to 5 psig inlet systems). Outlet 7–11″ w.c. Capacity ~465,000 Btu/hr (per one listing) for natural gas. Ambient –40 °F to 205 °F. Aluminum body. | View | ||

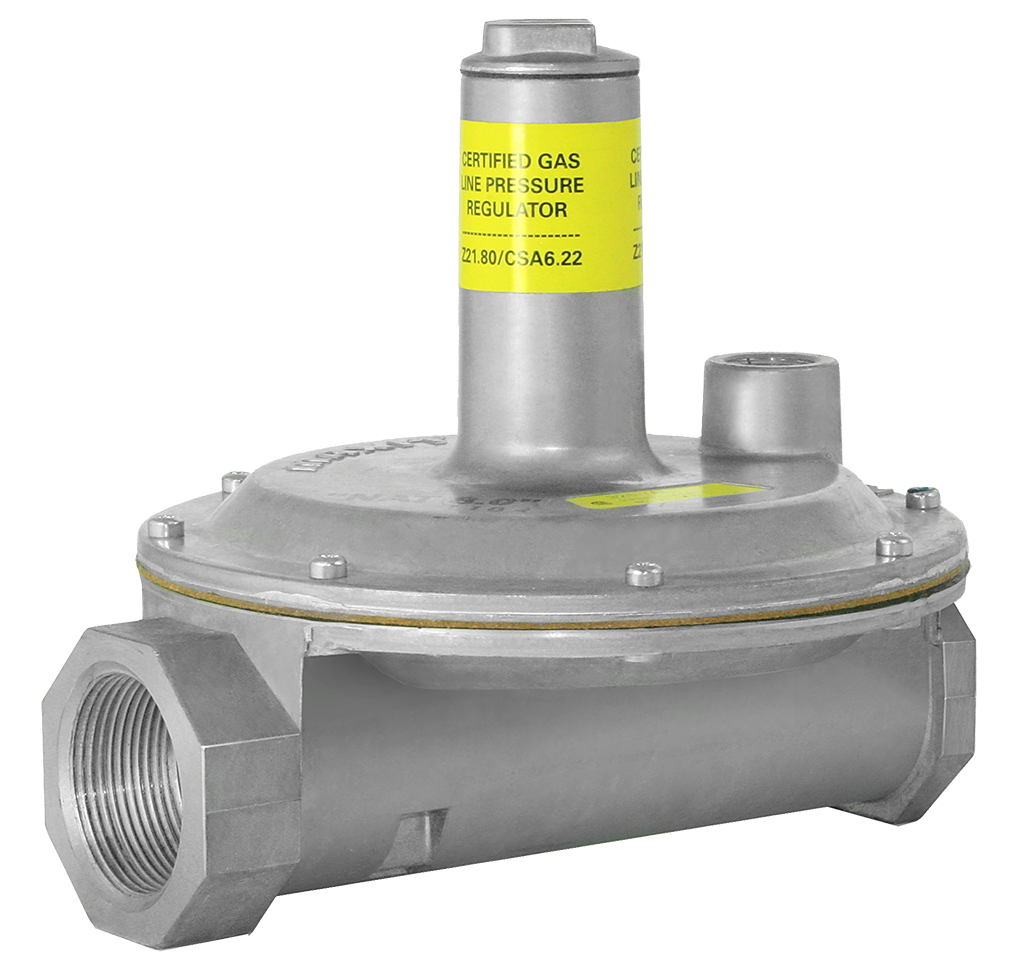

| Maxitrol (325-7al-1010-ng01) Natural Gas Line Pressure Regulator | MAX-325-7al-1010-ng01 | 1¼″ NPT Lever-Acting Line Pressure Regulator, certified for 2 psi piping systems (with limiter). Outlet 7–11″ w.c. Capacity: up to ~1,250,000 Btu/hr (single & total) for that size class. Suitable for natural gas or LPG. Aluminum body. | View | ||
| Maxitrol (325-7al210d-1010-ng01) Natural Gas Line Pressure Regulator | MAX-325-7al210d-1010-ng01 | 1¼″ NPT regulator with integrated OPD (over-pressure protection device) for up to 5 psig inlet piping systems. Outlet 7–11″ w.c. Capacity ~1,250,000 Btu/hr. Suitable for natural gas or LPG. Lever-acting design with vent limiter(s). | View | ||
| Maxitrol (325-9l-1212-ng01) Natural Gas Line Pressure Regulator | MAX-325-9l-1212-ng01 | 1½″ NPT Line Pressure Regulator (Model 9L series) for 2 psig piping systems. Outlet 7–11″ w.c. Capacity: ~2,250,000 Btu/hr (single & total load) in that size class. Suitable for natural gas or LPG. Lever-acting design. Aluminum body. | View | ||
| Maxitrol (325-9l210e-12-ng01) Natural Gas Line Pressure Regulator | MAX-325-9l210e-12-ng01 | 1½″ NPT line regulator with OPD (210E) for up to 5 psig piping systems. Outlet 7–11″ w.c. Capacity ~2,250,000 Btu/hr. Suitable for natural gas or LPG. Aluminum body. | View |
Showing 1 to 8 of 8 entries
